800w Esprite LED Framing Moving Head light

As a stage lighting equipment supplier, we offer LED moving head lights that excel in smooth movement and versatility. Our LED profile moving head models feature a framing shutter function, with 800w Mini framing options that allow individual blade angling and positioning. The framing shutters module, with 4 adjustable blades and a full frame rotation of + - 60°, offers unparalleled control. Plus, with 7 rotating, indexable, and replaceable gobos, our LED moving head lights provide dynamic lighting effects for any stage.Featuring CMYK color mixing, the unit can be very good performance in the television and theatre.  The animation wheel  combines the gobo effect  with vibrant colors that can be used to create an abstract motion effect. Compact and easy to transport, they are the perfect choice for any event lighting setup.

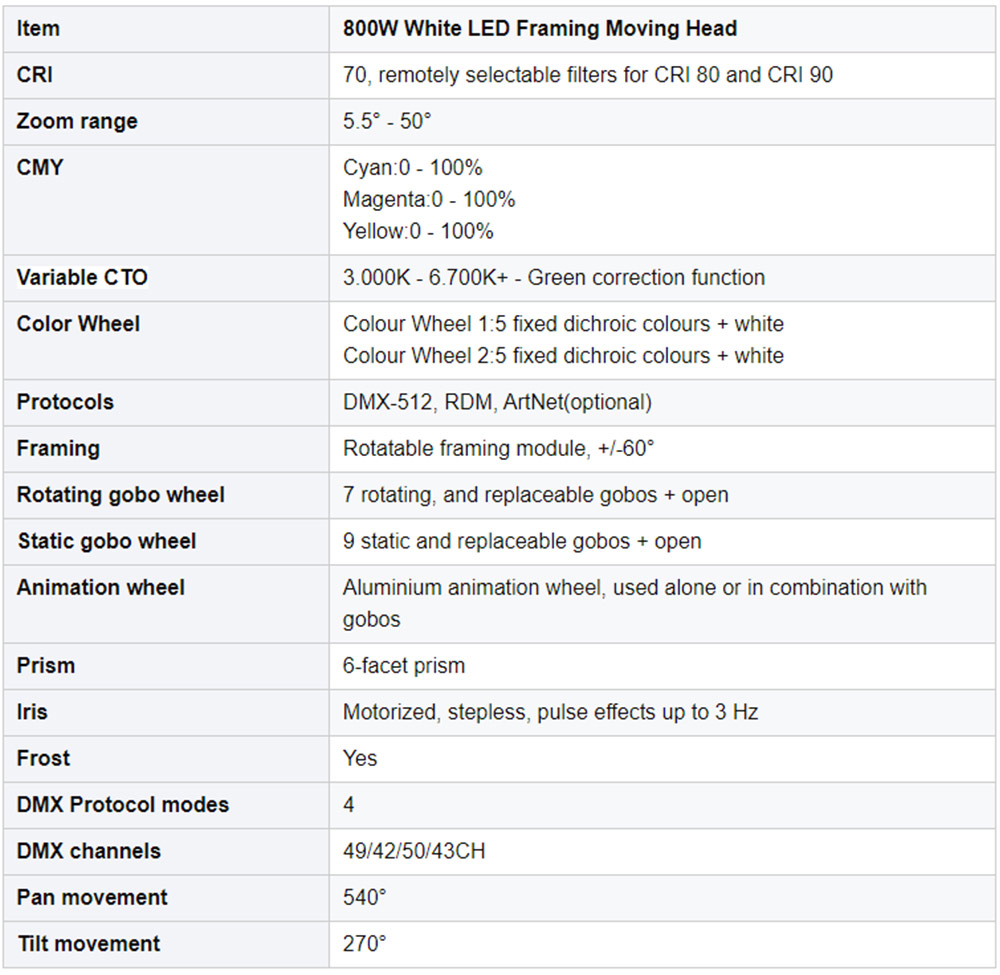

Light source:800W White LED Engine
CRl:70, remotely selectable filters for CRl 80 and CRl 90
LED life expectancy:min. 50.000 hours
High-efficiency 13-lens zoom optical system ratio:9:1
Zoom range:5.5°-50°
Cyan:0-100%
Magenta:0-100%
Yellow:0-100%
Variable CTO:3.000K-6.700K+-Green correction function
Colour Wheel 1:5 fixed dichroic colours + white
Colour Wheel 2:5 fixed dichroic colours + white
Protocols:DMX-512, RDM, ArtNet(optional)
Framing:Rotatable framing module, +/-60°
Rotating gobo wheel:7 rotating, and replaceable gobos + open
Static gobo wheel:9 static and replaceable gobos + open
Animation wheel:Aluminium animation wheel,used alone or in combination with gobos
Prism:6-facet prism
lris:Motorized, stepless, pulse effects up to 3 Hz
Frost:Yes
Motorized zoom and focus
DMX Protocol models:4
DMX channels:49/42/50/43CH
Pan movement:540°
Tilt movement:270°
N.W.:25kg
